Silicone Door Gasket (sold by the metre)
- A
- Profile width
- B
- Profile height
- ▮
- The channel that grips the door (orange)
This is a CUT END view. Measuring the face of a fitted gasket tells you nothing — two gaskets with the same face width can have completely different channels. Cut a short piece off and measure the cross-section. Sold by the metre; order long, because a short cut is scrap.
Reference illustration, not to scale and not a product photograph. We will add actual sample photos and measurements after verification. Need the figures now? Ask on WhatsApp.

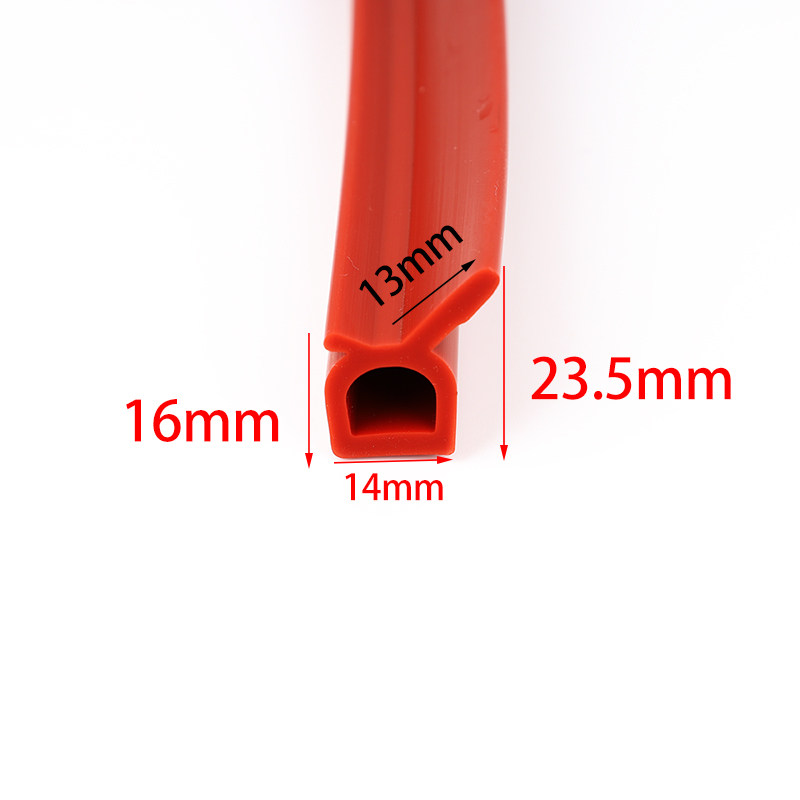

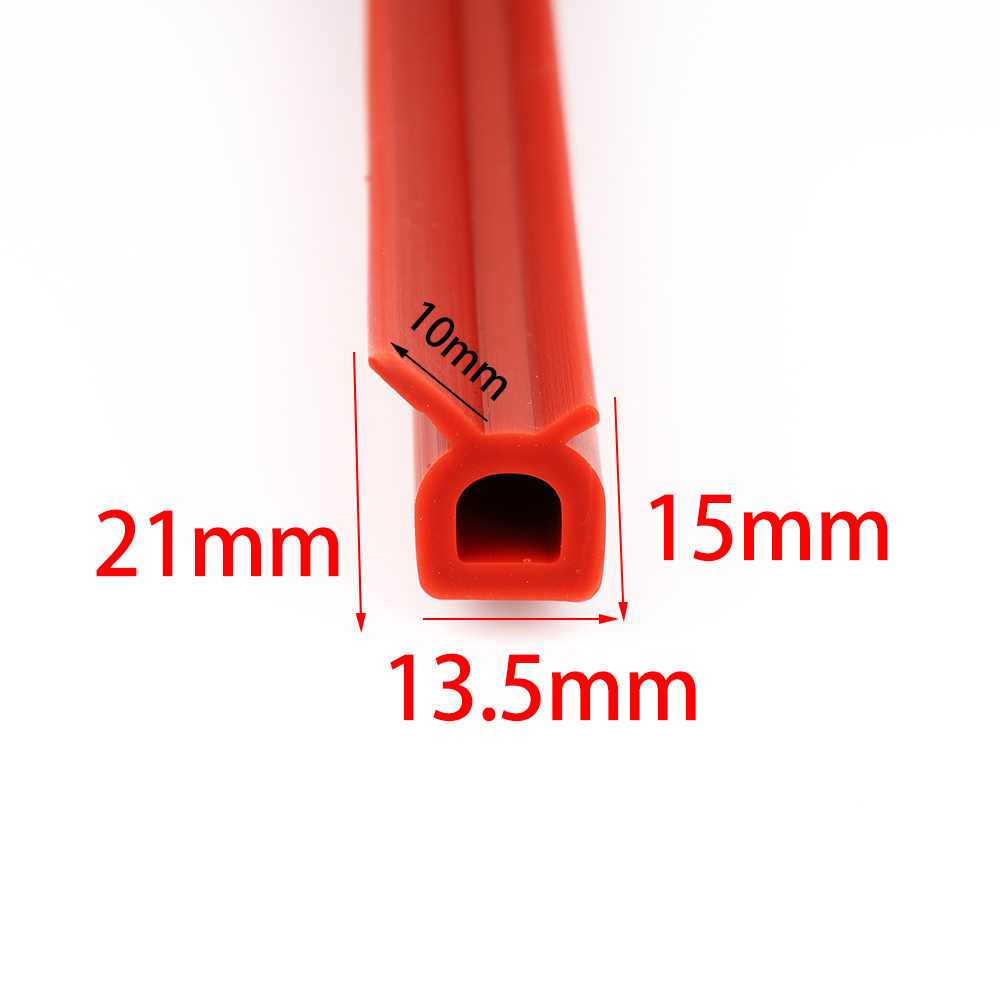

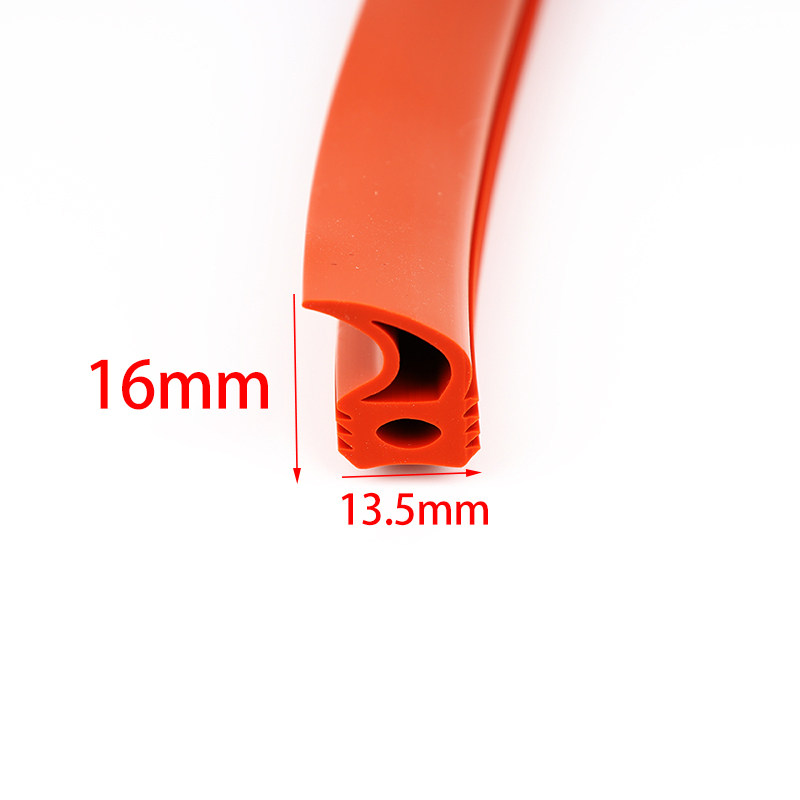

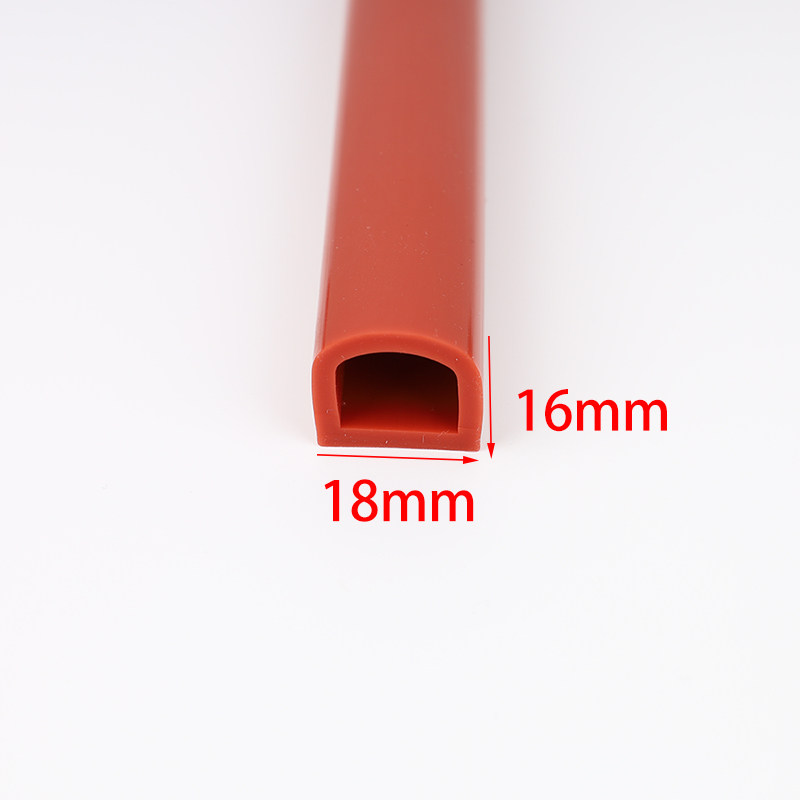

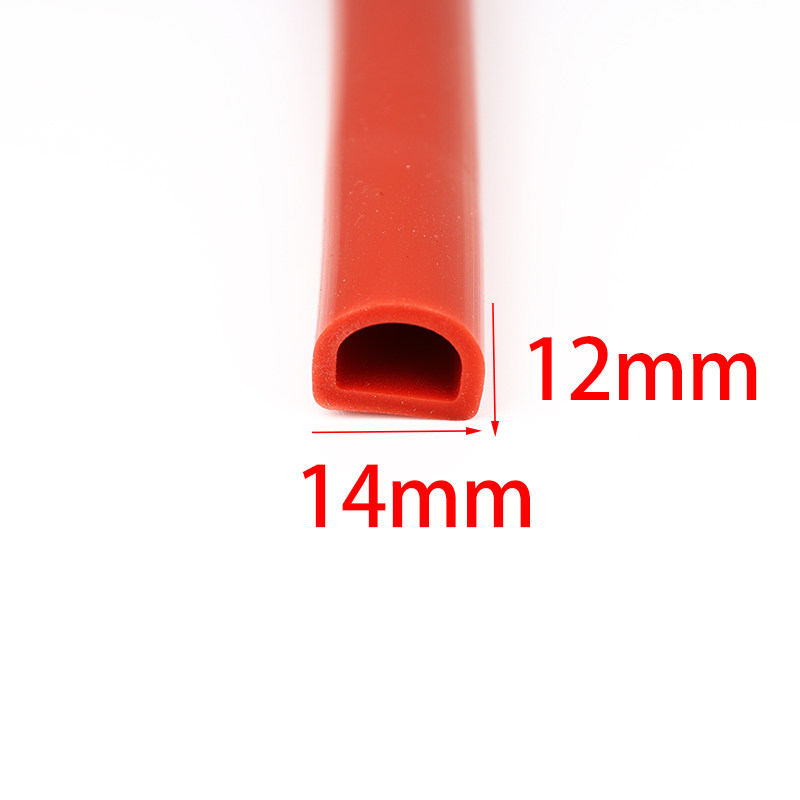

Supplied sample photos
Images supplied by the project owner. They illustrate samples only; confirm the exact part, dimensions, electrical details, and fitment before ordering.
High-temperature door seal for deck ovens and proofers. Sold by the metre with cutting instructions.
Useful first checks. A door that leaks heat is not always the gasket. Check the hinge and the latch first — a sagging door will leak with a brand new seal fitted.
What this part is
An extruded high-temperature seal, usually silicone, that closes the gap between door and frame. Sold by the metre and cut to length on site.
How it fails
It hardens and takes a permanent set, so it no longer springs back when the door closes. The oven then loses heat at the door, which reads as poor temperature holding, longer bakes, and uneven colour on the side nearest the leak. Corner tears from repeated door slamming are the other common failure.
What decides whether a replacement fits
These are category-level selection factors, not specifications for a specific product. Confirm each value from the machine and the physical part.
| Parameter | Typical | Why it matters |
|---|---|---|
| Profile width and height | Measured on a cut cross-section, not on the face | The cross-section is what decides fit. Two gaskets with identical face width can have completely different channel forms. |
| Channel or mounting form | Push-in channel, barbed tail, or adhesive-backed flat | Determines whether it grips the door at all. |
| Length required | Door perimeter plus an allowance for the corners | Order long. A gasket cut short is scrap. |
| Temperature rating | Rated for continuous service at deck oven temperature | An under-rated seal hardens within months and you are back where you started. |
The mistake people actually make. Measuring the visible face of the fitted gasket instead of cutting a short piece off and measuring the cross-section. A cut-end photo beside a caliper helps assess the actual profile.
Product specifications to verify
| Profile width | Not verified |
|---|---|
| Profile height | Not verified |
| Channel type | Not verified |
Fits these models
We have not published a verified model list for this part yet. We only list a machine once we have measured the part against it or a customer has confirmed the install — a list padded with guesses is worth less than no list.
Send us your nameplate and a photo of the old part and we will review what the evidence supports.
What to photograph and measure
Measure three things on a cut end of the old gasket: profile width, profile height, and the shape of the channel that grips the door. Photograph the cut end next to a caliper — the cross-section is what decides fit, not the length.
Help us understand your requirement
Product-specific fit, availability and sales information are being verified. Share your equipment and part details to support the research.
Brand and model names are used for identification only. Product-specific compatibility requires supporting evidence.
This page is a category guide. Product-specific specifications remain unpublished until checked against a physical sample.
