Thermocouple Probe
- A
- Probe stem, fitting to tip
- B
- Lead length, fitting to terminals
- C
- Thread or compression fitting size
Measure stem and lead separately. Never extend a thermocouple lead with ordinary wire — the join becomes a second junction and introduces error.
Reference illustration, not to scale and not a product photograph. We will add actual sample photos and measurements after verification. Need the figures now? Ask on WhatsApp.

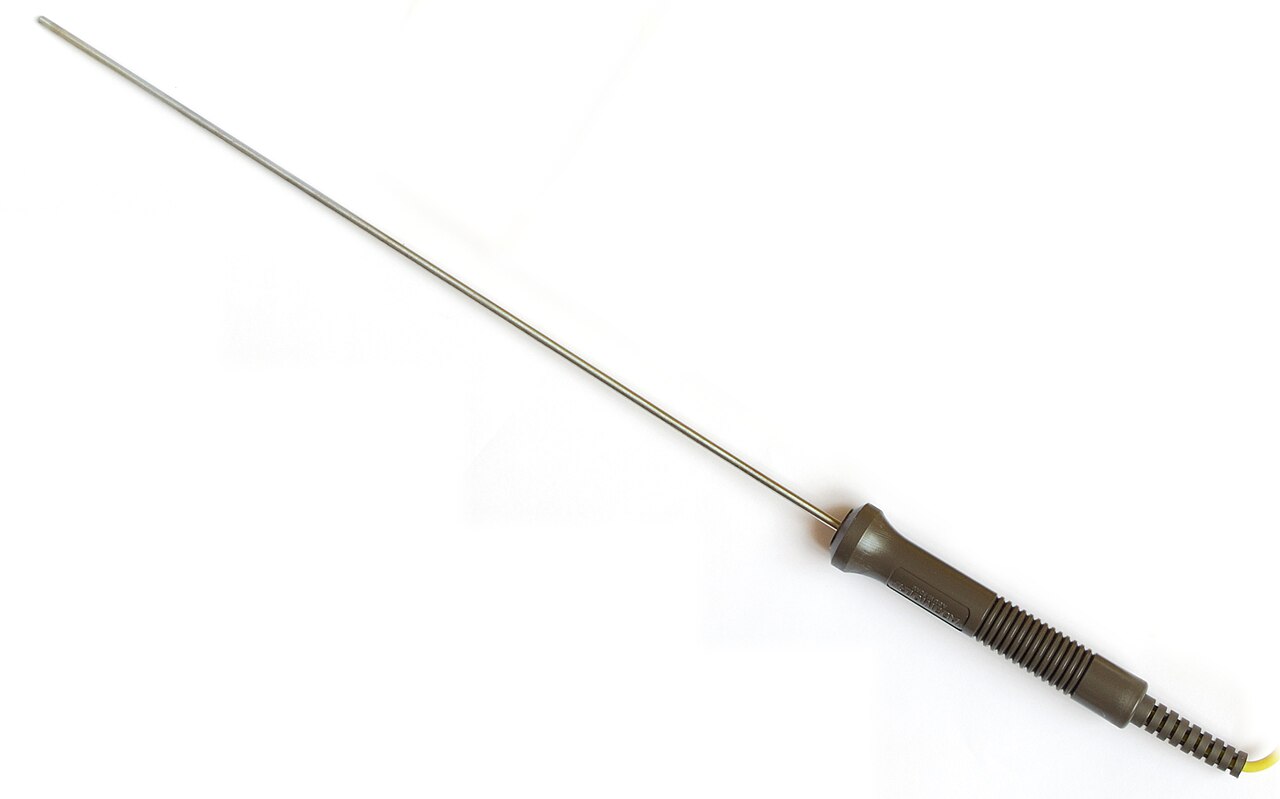

Reference photo
Temperature sensor for ovens with a digital controller. The usual cause of a reading that drifts or sticks.
Useful first checks. If the display is blank rather than wrong, the probe is not your problem — check the controller and its supply.
What this part is
A sensor made of two dissimilar metals joined at the tip, generating a small voltage proportional to temperature. Type K is the usual choice for bakery ovens.
How it fails
Thermocouples drift before they fail outright, so the oven bakes a little wrong for weeks before anyone calls. Then the junction opens and the controller reads full scale or an error. Grease ingress into the lead and repeated flexing at the gland are the usual causes.
What decides whether a replacement fits
These are category-level selection factors, not specifications for a specific product. Confirm each value from the machine and the physical part.
| Parameter | Typical | Why it matters |
|---|---|---|
| Type | K most commonly; J on some machines | Fitting a J probe to a K-configured controller gives a reading that is wrong but not obviously wrong. |
| Probe length | The metal stem, measured from the fitting to the tip | Decides where in the chamber it senses. A short probe reads the wall, not the air. |
| Lead length | From the fitting to the terminals | Too short will not reach the control box. Do not join thermocouple leads with ordinary wire — the join becomes a second junction and introduces error. |
| Thread or fitting | Commonly M8, 1/8" or 1/4" NPT compression | Decides whether it seats and seals in the existing boss. |
The mistake people actually make. Measuring probe and lead together as one length, then finding the stem sits too deep or the cable will not reach.
Product specifications to verify
| Probe length | Not verified |
|---|---|
| Lead length | Not verified |
| Thread size | Not verified |
| Type | Not verified |
Fits these models
We have not published a verified model list for this part yet. We only list a machine once we have measured the part against it or a customer has confirmed the install — a list padded with guesses is worth less than no list.
Send us your nameplate and a photo of the old part and we will review what the evidence supports.
What to photograph and measure
Measure the metal probe length and the cable length separately. Photograph the threaded fitting next to a ruler — thread size is what decides whether it seats.
Help us understand your requirement
Product-specific fit, availability and sales information are being verified. Share your equipment and part details to support the research.
Brand and model names are used for identification only. Product-specific compatibility requires supporting evidence.
This page is a category guide. Product-specific specifications remain unpublished until checked against a physical sample.
